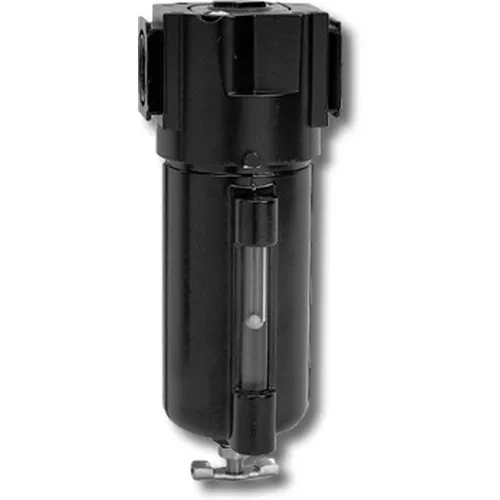

Arrow Pneumatic F353W ARRF353W F353W Standard Filter
Particulate filters remove harmful oil/water condensate, pipe scale, dirt and rust from you compressed air system. This prevents corrosive damage to compressed air equipment and finished products. Typically, particulate filters are installed upstream of regulators to prevent valve failure. Thare are also used as pre-filters to oil removing and coalescing filters to insure high efficiency and long element life in applications such as paint spraying, instrumentation and pharmaceuticals.
- 40 micron sintered bronze element offers depth filtration. High strength, recleanable
- 5 oz. polycarbonate bowl with nickel plated steel bowl guard
- Manual push drain on polycarbonate bowl
- In-line or modular installation
- Manual 1/8″ twist drain on metal bowls
Specifications:
- Metal Bowl – Zinc, Black E coated
- Max pressure 250 psig
- Operating temperature range 40° to 160°F
- Internal Float Drain – Buna N Float
- Operating pressure range 30 to 175 psig
- Operating temperature range 40° to 160°F
- Body – Black E coated aluminum
- Baffle – Plastic
- Vane – Plastic
- Bowl Guard – Nickel Plated Steel
- Seals – Buna N
- Elements – 40 micron sintered bronze
WARNING! Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl.
Dimenstions:
- Pipe Sizes – 3/8″
- Model Numbers – F353W
- Max Flow SCFM – 75
- Bowl Capacity – 6 oz.
- Dimensions (inches)
- A – 2 3/4″
- B – 3/4″
- C – 6 1/4″
- D – 2 1/2″
- Weight (lbs) – 1.2
